Overview

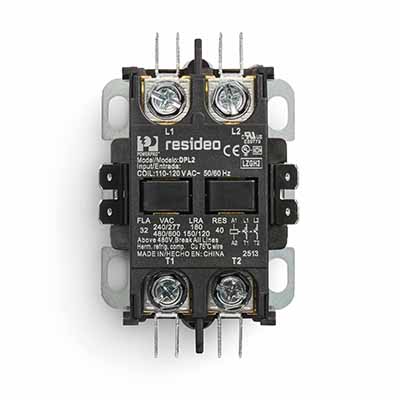

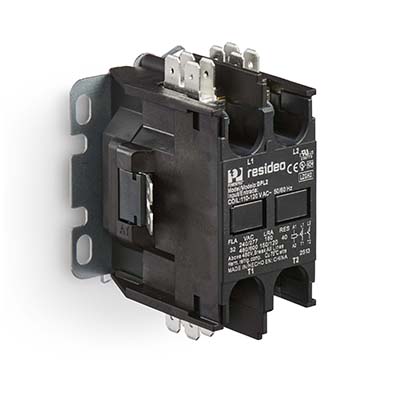

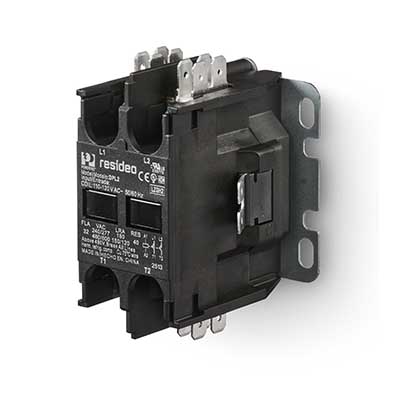

These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors and are complaint with A2L refrigerants.
Features
- Complaint with A2L refrigerants.
- Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI requirement.
- Silver cadmium oxide contacts provide long life under demanding duty cycles.|Low profile design allows for more wiring room.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Product Specifications
- Application
- PowerPro Definite Purpose Contactor
- Dimensions (in.)
- 2.2 in. high x 2.5 in. wide x 3.31 in. deep
- Dimensions (mm)
- 56 mm high x 59 mm wide x 84 mm deep
- Item Type
- Product
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL 60335-2-40
- Approvals, Canadian Standards Association
- Certified File No. E59779
- Electrical Connections
- lug connectors
- Temperature Ratings (C)
- -20 C to +65 C
- Temperature Ratings (F)
- -4 F to +149 F
- Switching
- DPST
- Contact Ratings (AFL)
- 32 A @ 240/277 Vac, 480 Vac, 600 Vac
- Contact Ratings (resistive)
- 40 A @ 240/277 Vac, 480 Vac, 600 Vac
- Poles
- 2
- Contact Connections (coil)
- 1/4 in. quick-connects
- Coil Ratings Voltage
- 208-220VAC 50Hz; 208-240VAC 60Hz
