Product Specifications

Application

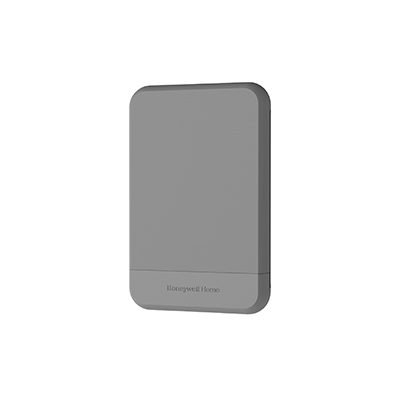

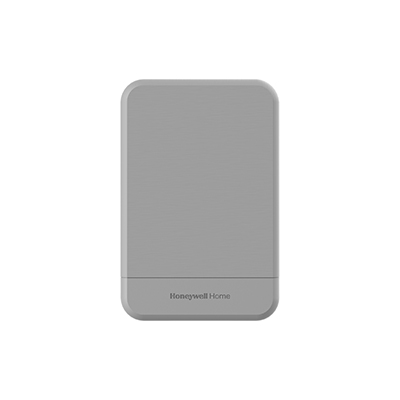

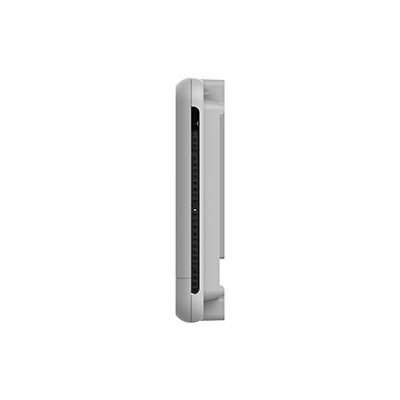

The EIM is installed in the equipment room and communicates wirelessly to the thermostat. Makes equipment upgrades easy by wiring extra heat/cool stages to EIM rather than running those wires to the thermostat location.

Dimensions (in.)

8.08 in H x 1.59 in L x 5.36 in W

Dimensions (mm)

205 mm H x 41 mm L x 136 in W

Includes

Equipment Interface Module (EIM), Installer Guide

Used With

ElitePRO S1000, S1100, S1200 and T10+ Pro Smart Redlink 3.0 thermostats

Electrical Ratings

20 to 30 VAC

Electrical Connections

Screw Terminals

LEDs

8

Ambient Temperature Range (C)

-40 °C - 74 °C

Ambient Temperature Range (F)

-40 °F - 165 °F

Color

Gray
