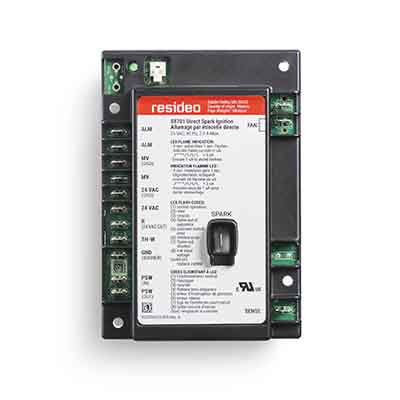

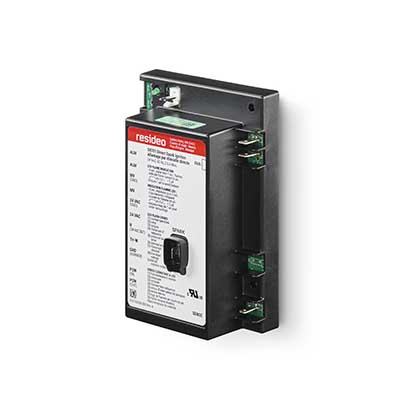

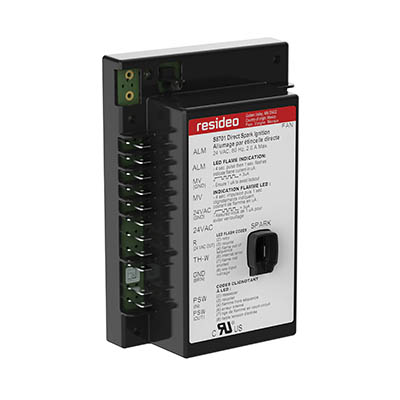

Direct Spark Ignition Control. 1 trial for ignition with 21 sec trial time. Two Rod. Includes alarm terminal.
Direct Spark Ignition Control. 1 trial for ignition with 21 sec trial time. Two Rod. Includes alarm terminal.
Direct Spark Ignition Control. 1 trial for ignition with 21 sec trial time. Two Rod. Includes alarm terminal.

S8701A1122/U

Direct Spark Ignition Control. 1 trial for ignition with 21 sec trial time. Two Rod. Includes alarm terminal.

  • Product Info
  • Literature

Overview

The S8701 family of ignition controls provides fan relay, pressure switch input, ignition sequence, flame monitoring, and safety shutoff for direct spark ignition gas-fired appliances.

Product Specifications

Dimensions (in.)
1.85 in H x 5.6875 in L x 3.9375 in W
Electrical Ratings
Control Voltage: 24V (18-30 Vac)
Frequency
50/60 Hz
Approvals, Underwriters Laboratories Inc.
UL 60730-1, UL 60730-2-5
Flame Failure Response Time (sec)
0.8 sec min 1.3 sec maximum at 5uA/ 60Hz.
Ambient Temperature Range (C)
-40 °C to 79 °C
Ambient Temperature Range (F)
-40 °F to 175 °F
Ignition System Type
Direct Spark Ignition
Typical Gas Control
Direct Ignition valves up to 2 A
Flame Sense
2 Rod
Ignition Source
Internal high voltage spark generator
Ignition Trials To Lockout
1
Ignition Trial Time (sec)
21 sec
Maximum Valve Load @ 24 Vac (Amps)
2A
There is no literature attached to this product, please try another material search. If you believe that there should be literature for this product, please contact Customer Care for website support.
