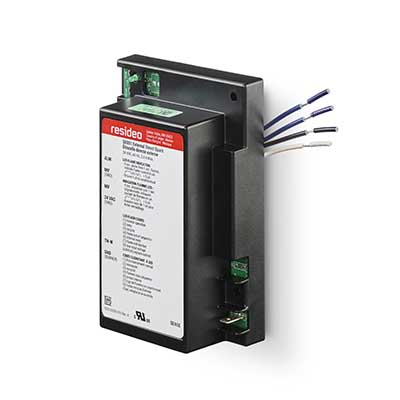

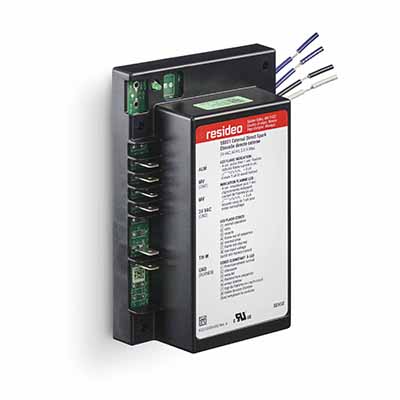

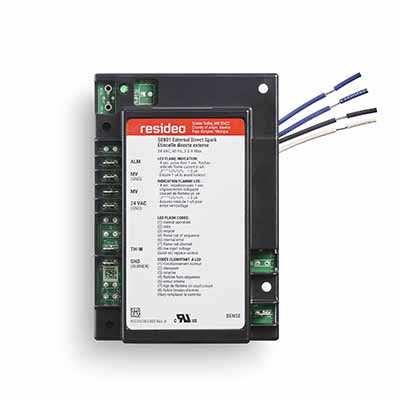

External Direct Spark Ignition Control. 1 trial for ignition with 30 sec pre-purge, and 4 sec trial time. Two Rod. Includes alarm terminal.
External Direct Spark Ignition Control. 1 trial for ignition with 30 sec pre-purge, and 4 sec trial time. Two Rod. Includes alarm terminal.
External Direct Spark Ignition Control. 1 trial for ignition with 30 sec pre-purge, and 4 sec trial time. Two Rod. Includes alarm terminal.

S8801A1110/U

External Direct Spark Ignition Control. 1 trial for ignition with 30 sec pre-purge, and 4 sec trial time. Two Rod. Includes alarm terminal.

  • Product Info
  • Literature

Overview

The S8801 family of ignition controls provides fan relay, pressure switch input, ignition sequence, flame monitoring, and safety shutoff for direct spark ignition gas-fired appliances.

Product Specifications

Dimensions (in.)
1.85 in H x 5.6875 in L x 3.9375 in W
Electrical Ratings
Control Voltage: 24V (18-30 Vac)
Frequency
50/60 Hz
Approvals, Underwriters Laboratories Inc.
UL 60730-1, UL 60730-2-5
Flame Failure Response Time (sec)
0.8 sec min 1.3 sec maximum at 5uA/ 60Hz.
PrePurge
28 sec minimum; 38 sec max
Ambient Temperature Range (C)
-40 °C to 79 °C
Ambient Temperature Range (F)
-40 °F to 175 °F
Ignition System Type
Direct Spark Ignition
Typical Gas Control
Direct Ignition valves up to 2 A
Flame Sense
2 Rod
Ignition Source
External High Voltage Spark Generator
Ignition Trials To Lockout
1
Ignition Trial Time (sec)
4 sec
Maximum Valve Load @ 24 Vac (Amps)
2A
