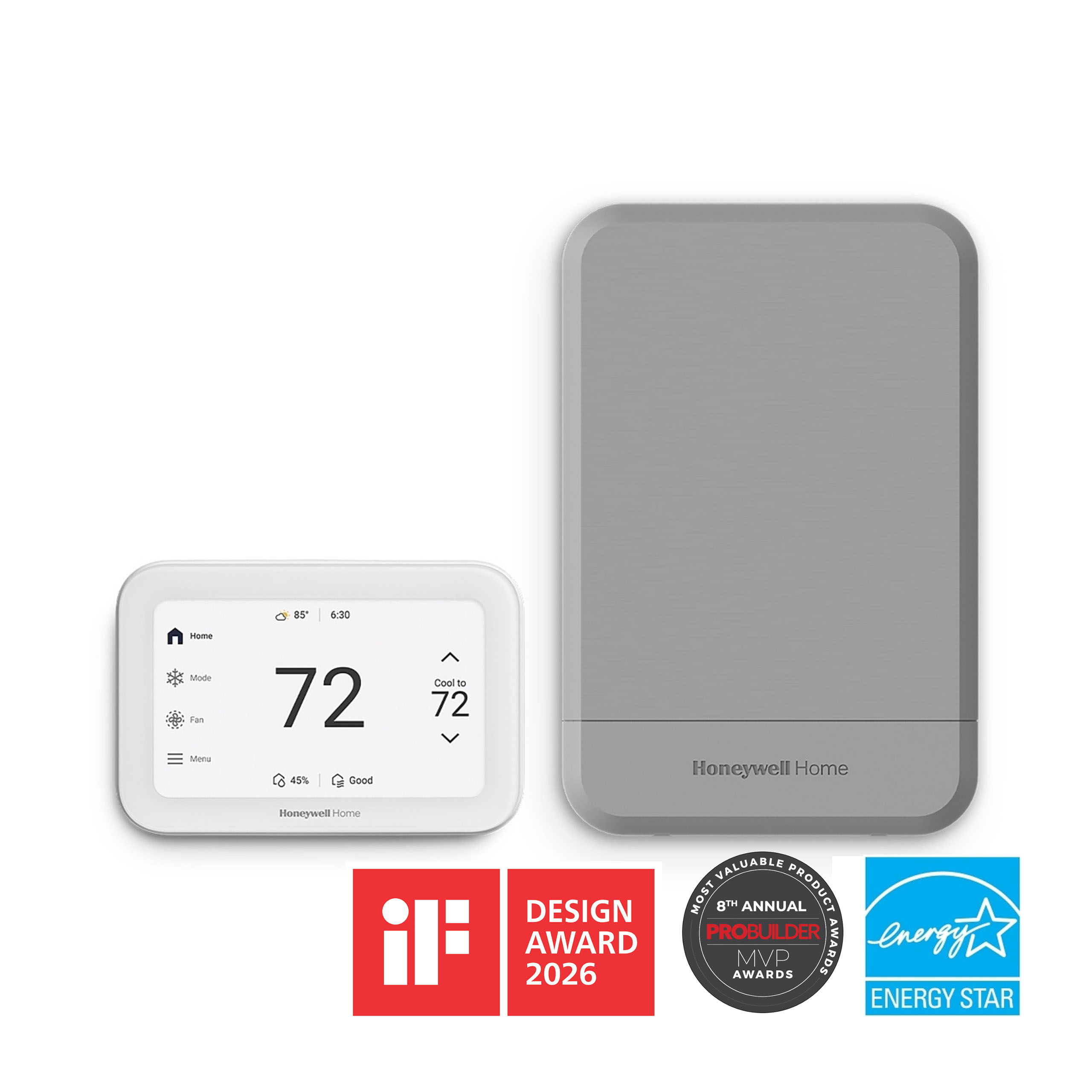

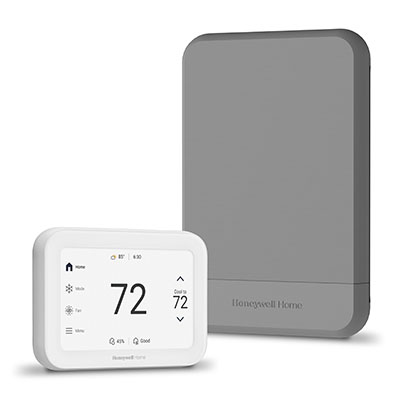

ElitePRO S1200 Smart Thermostat kit with Redlink 3.0 EIM. White
ElitePRO S1200 Smart Thermostat kit with Redlink 3.0 EIM. White

YTHX1200W7/U

ElitePRO S1200 Smart Thermostat kit with Redlink 3.0 EIM. White

  • Product Info
  • Literature

Features

  • WiFi streams video from First Alert® and Ring® doorbells
  • Works with residential and commercial systems up to 4H/2C heat pump or 3H/3C conventional
  • Control up to 2 IAQ devices¹ with configurable outputs
  • Monitor indoor humidity, VOC, and estimated CO2
  • Expandable application coverage and simplified installation with use of equipment interface module (EIM)
  • Compatible with dual fuel, fan-coil, PTAC, and radiant systems
  • Advanced occupancy detection helps save energy
  • Redlink™ 3.0 technology connects wirelessly with Room Sensors (temp, humidity, & motion), EIM, and Outdoor Sensors (temp & humidity)
  • Prioritize the comfort of the room of choice with remote Room Sensors
  • Homeowners can control from anywhere using the First Alert by Resideo app
  • Demand response capable
  • 2.4 GHz or 5GHz WiFi connection
  • Works with Google Home, Amazon Alexa, and Apple Home
  • 5-year warranty

Product Specifications

Application
Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
Dimensions (in.)
(Thermostat) 5.25 W X 3.54 H X 0.96 D
Dimensions (mm)
(Thermostat) 90 H x 133 W x 24 D
Includes
Thermostat, EIM
Mounting
Horizontal Mount to wall or J-Box
Frequency
60 Hz
Stages
4H/2C Heat Pump or 3H/4C conventional
Operating Humidity Range (% RH)
5% to 90% RH, non-condensing
Supply Voltage
20 to 30 VAC
Switch Positions (System)
(Touchscreen) Heat, off, cool, auto, em heat
Switch Positions (Fan)
(Touchscreen) on, auto, circ, (fan speeds for some systems)
Operating Temperature Range (F)
37° to 102° F
Operating Temperature Range (C)
2.8° to 38.9° C
Shipping and Storage Temperature Range (F)
-20 °F to 120 °F
Shipping and Storage Temperature Range (C)
-29 °C to 49 °C
Network Communications
Redlink 3.0, WiFi (2.4 and 5 GHz), and Matter
Color
White
Display
Touch Screen
Programmability
Time-Based or Smart Away; Residential or Commercial
Terminal Designations
(On EIM) R, Rc, Rh, Y1, Y2, G, O/B, W1, W2-Aux 1, W3-Aux 2, L, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4
Display Size
5 sq. in
Changeover
Auto or Manual
Setting Temperature Range (F)
Heat: 40 °F to 90 °F|Cool: 50 °F to 99 °F (with optional limits)
Setting Temperature Range (C)
Heat: 4.5 °C to 32 °C|Cool: 10 °C to 37 °C (with optional limits)
Humidification Setting Range
0% to 90% RH
Dehumidification Setting Range
10% to 100% RH
